ACR fittings don’t just connect copper tubes—they play a direct role in protecting system stability, efficiency, and long-term reliability. In real refrigeration projects, many hidden problems such as refrigerant leaks, uneven cooling, and repeated callbacks can often be traced back to one overlooked factor: the fittings used in the piping system. ACR fittings are designed specifically for air conditioning and refrigeration environments, where pressure, cleanliness, and flow behavior are far more demanding than in ordinary plumbing. As a professional manufacturer and supplier, Ningbo Top Hcool Metal Fittings focuses on copper fittings for refrigeration as well as other industrial fields, helping customers reduce installation errors and maintenance risks through reliable and customizable ACR solutions.
In refrigeration piping, cleanliness is not a secondary concern. It is a core performance requirement. Refrigerant systems circulate not only refrigerant but also compressor oil, and these fluids are highly sensitive to moisture, dust, and residue. Even a small amount of contamination inside a fitting can react chemically over time, leading to acid formation, corrosion, or internal blockage.
ACR fittings are manufactured, handled, and packaged with this reality in mind. Their internal surfaces are kept clean, and protective measures are taken to prevent debris from entering before installation. This focus on cleanliness helps ensure that the refrigerant path remains stable from the first day of operation.
When refrigerant flows through a clean and stable piping system, compressors operate under less stress. Oil circulation is smoother, pressure fluctuations are reduced, and overall efficiency improves. Users may not see these benefits directly, but they experience them as quieter operation, more consistent cooling, and fewer unexpected service calls. Over time, the reduced mechanical and chemical stress translates into longer compressor life and lower operating costs.
One of the most practical advantages of ACR fittings is that they are sized by actual outside diameter. This creates a clear and direct match between the copper tube and the fitting. Technicians do not need to interpret nominal sizes or make assumptions during installation. The correct size is immediately identifiable, which simplifies on-site work and reduces the chance of human error.
In contrast, nominal sizing systems used in plumbing can introduce confusion, especially in mixed environments where refrigeration and water piping coexist. OD-based identification removes this ambiguity and creates a shared understanding between designers, installers, and maintenance teams.
Installation errors often occur under time pressure. When fittings are easy to identify and match correctly, installation becomes faster and more consistent. Correct OD matching ensures uniform brazing gaps and predictable filler flow, which directly improves joint quality. The result is fewer wrong-size joints, fewer weak connections, and a significant reduction in leak risk over the system’s lifetime.
Refrigeration systems experience constant thermal cycling. Every start and stop causes expansion and contraction in copper lines and fittings. Over time, these cycles place stress on joints, especially in systems with frequent load changes. ACR fittings are designed to support strong brazed joints that can withstand this repeated movement.
Joint geometry, wall thickness, and material consistency all contribute to how well a joint survives thermal cycling. When fittings and tubes are precisely matched, stress is distributed evenly, reducing the likelihood of fatigue cracks forming at the joint.
Brazing filler metal plays a critical role in joint durability. In refrigeration applications, filler selection affects not only mechanical strength but also resistance to vibration and pressure changes. ACR fittings are compatible with commonly used refrigeration brazing practices, making it easier for installers to achieve reliable results without excessive rework.
Using fittings not designed for refrigeration can lead to uneven filler distribution or overheating during brazing, both of which compromise joint integrity and shorten service life.
In complex refrigeration systems, especially those with long piping runs or multiple indoor units, fittings have a direct impact on flow behavior. Abrupt changes in direction, inconsistent internal diameters, or poorly designed branches can increase pressure loss and disrupt oil return to the compressor.
ACR fittings are designed to support smooth refrigerant flow and predictable pressure characteristics. This is particularly important in systems where maintaining proper oil circulation is critical for compressor health.
When flow behavior is compromised, users may experience uneven cooling between zones, increased system noise, or unstable operation during peak load conditions. These symptoms are often blamed on equipment rather than piping design. By using fittings designed for refrigeration flow dynamics, many of these issues can be avoided from the beginning.
Maintenance is an inevitable part of any refrigeration system. ACR fittings support easier maintenance by enabling predictable joint locations and consistent installation practices. When joints are placed where they can be inspected and serviced without excessive disassembly, maintenance becomes faster and less disruptive.
This practical advantage reduces labor time during inspections and repairs, which is especially valuable in commercial and industrial environments where downtime carries a high cost.
Standardized ACR fittings make spare parts management simpler and more economical. Maintenance teams can stock common sizes with confidence, knowing they will fit correctly across multiple systems. This reduces inventory complexity and ensures that replacements are available when needed, further lowering the risk of extended downtime.

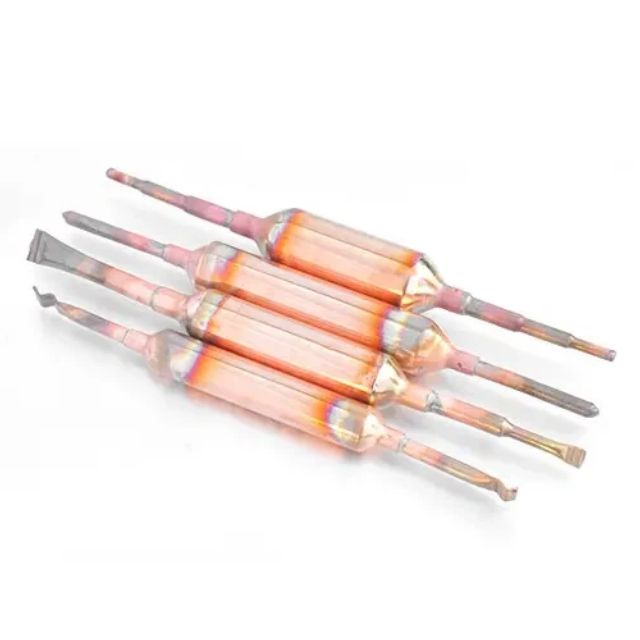

Ningbo Top Hcool Metal Fittings manufactures a wide range of standard ACR copper fittings using red punched forging processes or direct copper pipe forming. These fittings are produced mainly from TP2 and T2 copper materials, ensuring stable quality and consistent dimensions. They are widely used in refrigeration systems as well as in valves, communications, and plumbing applications, allowing customers to source multiple solutions from one reliable supplier.
Standard ACR fittings enable fast procurement and straightforward replacement, which is essential for both new installations and maintenance-driven projects.
Not every project follows standard dimensions or layouts. For specialized equipment or compact system designs, customized copper fittings are often required. Ningbo Top Hcool Metal Fittings provides custom solutions using TP2 and T2 copper to meet specific diameter, thickness, and configuration requirements.
In VRV and VRF systems, branch pipes—also known as copper refnet joints or Y branch pipes—play a critical role in distributing refrigerant from the outdoor unit to multiple indoor evaporators. These components are divided into gas and liquid pipes, with the gas pipe generally thicker than the liquid pipe. Refrigerant is throttled through expansion devices, distributed through the liquid branch, and returned as gas through the gas pipe after absorbing heat. Our ACR copper refnet joints are produced mainly from TP2 copper and are available in different diameters to match various air-conditioner brands, supporting stable system operation and easier maintenance.
ACR Fittings Advantage | Practical Benefit | Typical Problem Avoided | Best-Fit Applications |
Clean internal surfaces | Stable refrigerant chemistry | Acid formation, corrosion | Commercial refrigeration |
OD-based sizing | Faster, accurate installation | Wrong-size joints | Split AC systems |
Brazing-optimized design | Stronger joints | Fatigue cracks | Industrial HVAC |
Flow-friendly geometry | Balanced refrigerant flow | Uneven cooling | VRF and VRV systems |
Standardized dimensions | Easier maintenance | Spare part mismatch | Multi-site facilities |
The real value of ACR fittings lies in the results they deliver over time: fewer leaks, fewer installation mistakes, and steadier system performance. Clean refrigerant paths protect compressors, OD-based identification reduces errors, and well-designed joints withstand the demanding conditions of HVAC-R operation. Ningbo Top Hcool Metal Fittings translates these advantages into practical products through standard ACR fittings and customized TP2 and T2 copper solutions, including copper refnet joints for complex VRF systems. For projects that demand durability, efficiency, and long-term stability, choosing the right refrigeration piping reliability solution is a decisive step. Contact us today to learn more about our ACR fittings, explore our copper fitting product range, and discuss how we can support your refrigeration system with confidence.
Why are ACR fittings considered more reliable than ordinary copper fittings?
They are designed specifically for refrigeration conditions, with OD-based sizing, higher cleanliness standards, and brazing-ready geometry.
How do ACR fittings help reduce callbacks?
By minimizing installation errors, improving joint durability, and supporting stable refrigerant flow, they lower the risk of leaks and performance issues.
Are ACR copper fittings suitable for VRF systems?
Yes. ACR fittings, including copper refnet joints, are commonly used in VRF and VRV systems to ensure balanced refrigerant distribution.
Can customized ACR fittings be produced for special equipment?
Yes. Using TP2 and T2 copper, customized fittings can be manufactured to match non-standard dimensions and system layouts.
