When it comes to building a reliable and efficient HVAC or irrigation system, one of the most essential components is the quick coupling valve. These small but powerful connectors allow for fast connections and disconnections of hoses or pipes without the need for tools, reducing downtime and increasing efficiency. Among the various materials used in manufacturing these valves, brass has emerged as the industry favorite due to its durability, corrosion resistance, and versatility. In this comprehensive guide, we’ll explore the different types of quick coupling valves, with a special focus on the brass valve, including its applications, benefits, and installation tips.
Whether you're a contractor, engineer, or installer, this article will help you understand how to choose the right quick coupling valve for your system, what makes brass fittings stand out, and how to install them properly. We’ll also introduce top-rated product options from Ningbo Top Hcool Metal Fittings, a trusted manufacturer specializing in HVAC components.
The brass valve is a widely used component in plumbing, HVAC, and industrial systems. Brass, an alloy of copper and zinc, is known for its excellent strength, corrosion resistance, and long service life. Its ability to withstand high temperatures and pressures makes it ideal for systems requiring durability and reliability.
Excellent corrosion resistance, especially in humid environments
Long lifespan with minimal maintenance
High thermal conductivity
Reliable sealing performance
Easy to machine and install
In the context of quick coupling valves, brass is often the material of choice because it ensures leak-free performance during frequent connections and disconnections, which are common in HVAC and irrigation applications.
Quick coupling valves come in a range of types, sizes, and configurations to meet different application needs. Below, we explore the most common types, including product examples from the Top Hcool product catalog.

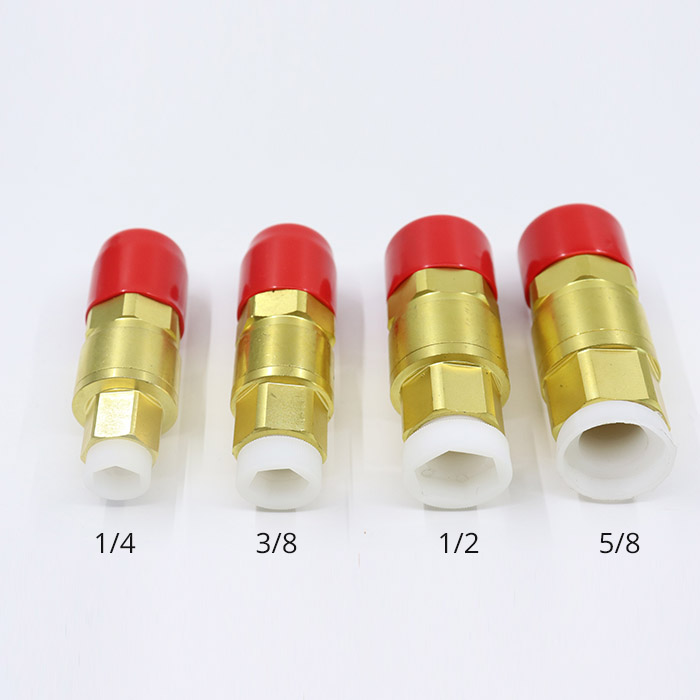

The GIA quick brass valve is designed for split-type air conditioning systems. It features a double union design, allowing for easy length adjustment of linesets and quick connection without special tools.
Key Features:
Available in multiple sizes: 1/4, 3/8, 1/2, 5/8
Compatible with R32 refrigerant
Self-sealing mechanism to prevent leakage
Ideal for residential and light commercial AC units
Best for: Installers looking for fast installation and a reliable seal in HVAC projects.
The GIII quick brass valve is a compact, self-sealing valve commonly used in freezers, chillers, and commercial refrigeration systems. It’s designed to minimize refrigerant loss during maintenance or disconnection.
Key Features:
Tight sealing with a quick-release design
Brass body for corrosion resistance
Suitable for high-pressure systems
Extended service life
Best for: Commercial refrigeration systems and high-efficiency HVAC units.
Known for its compact size and high-flow capability, the GIV quick brass valve is perfect for systems that require frequent connection cycles. It’s widely used in both HVAC and irrigation systems.
Key Features:
High flow rate with minimal pressure drop
Robust brass construction
Available in 3/4" and other sizes
Smooth operation with a secure lock mechanism
Best for: High-performance HVAC and garden irrigation systems.
The 1 quick coupler valve is a larger-sized coupling used in systems that require higher volume flow, such as large-scale HVAC setups or commercial garden irrigation.
Key Features:
1-inch diameter for greater capacity
Designed for easy hose connection
Durable brass body
Leak-free performance under pressure
Best for: High-capacity systems or industrial applications.
This is one of the most common sizes for residential and light commercial systems. The quick coupling valve 3/4 fits standard hose sizes and is compatible with most quick coupler hose systems.
Key Features:
Fits most hose ends
Brass construction for long-term use
Easy connection/disconnection process
Best for: Garden irrigation, water transfer systems, and mid-sized HVAC setups.
The quick coupling valve purpose is to allow fast, tool-free connection and disconnection of pipes and hoses within a system. This reduces installation time, enables easy maintenance, and minimizes the risk of leakage or refrigerant loss.
HVAC systems (split AC, central air, refrigeration)
Garden irrigation
Industrial fluid handling
Refrigerant charging lines
Water filtration systems
Using a brass quick valve enhances these benefits thanks to its strength and resistance to wear and tear.
Proper installation of a quick coupling valve ensures system integrity and long-term performance. Below is a step-by-step guide to installing a brass valve in an HVAC or irrigation system.
Turn off the power or pressure source connected to the pipeline.
Clean the ends of the pipe or hose to remove any debris or moisture.
Select the appropriate quick coupler valve key based on the valve model (sizes vary).
Insert the brass fittings securely into the pipeline.
Use the Quick Coupler Key to lock the connection.
Test the system under low pressure to check for leaks.
If no leaks are detected, proceed to run the system under full pressure.
Here’s a comparison table to help you decide which brass valve suits your system best:
| Valve Type | Size Options | Use Case | Key Benefit | Compatible Refrigerants |
|---|---|---|---|---|
| GIA Quick Brass Valve | 1/4", 3/8", 1/2", 5/8" | Split AC Systems | Self-sealing, double union | R32, R410A |
| GIII Quick Brass Valve | 3/8", 1/2" | Freezers, chillers | Leak-proof, compact | R134a, R410A |
| GIV Quick Brass Valve | 3/4", 1" | HVAC & Irrigation | High flow, compact | R22, R407C |
| 1 Quick Coupler Valve | 1" | Industrial HVAC | High volume, durable | R410A, R404A |
| Quick Coupling Valve 3/4 | 3/4" | General Use | Standard fit | Multiple fluids |
Choosing the right brass quick valve depends on several factors:
System Type: Are you working with HVAC, irrigation, or refrigeration?
Connection Size: Common sizes include 1/4", 3/8", 1/2", 3/4", and 1".
Refrigerant Compatibility: Ensure the valve is suitable for the refrigerant in use.
Installation Environment: Consider exposure to moisture, pressure range, and temperature.
Frequency of Use: Systems with frequent connection/disconnection cycles require more robust valves.
For instance, a GIA quick brass valve is ideal for residential split AC units, while a GIII model may better serve a commercial freezer.
Ningbo Top Hcool Metal Fittings is a top manufacturer specializing in brass fittings and quick coupling valves for HVAC systems. Their products are known for quality, innovation, and ease of use.
Precharged R32 Quick Connect Lineset
Vacuumed Quick Connecting Pipe for Air Conditioner
GIA Brass Male Valve (1/4", 3/8", 1/2", 5/8")

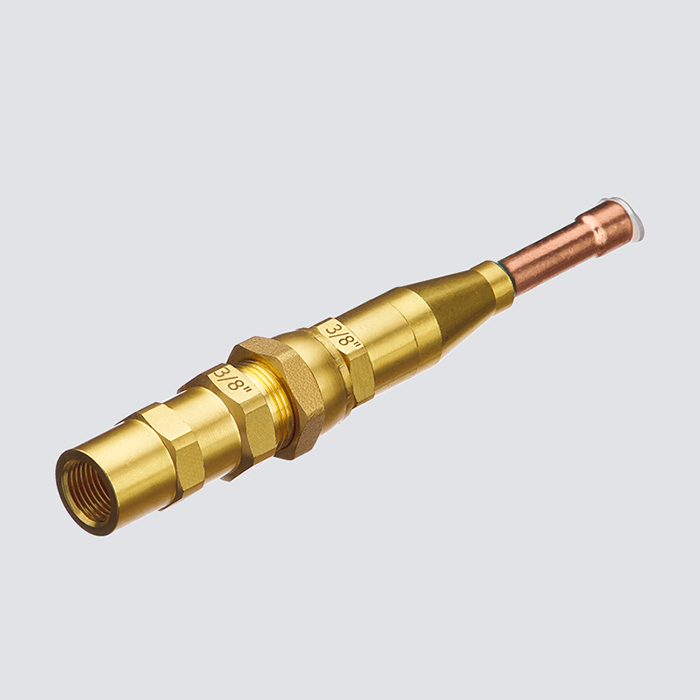

GIA Double Union for Lineset Adjustment
Self-Closing Quick Valve for Freezers
All products are designed for fast installation and long-term performance. If you're looking for OEM brass valves or customized quick coupler hose solutions, Top Hcool offers flexible manufacturing capabilities.
Even the most high-quality brass valve can fail if not used correctly. Here are some common mistakes to avoid:
Using the wrong quick coupler key size
Over-tightening the connection, leading to thread damage
Failing to clean the pipe ends before installation
Choosing the wrong size valve, causing flow restriction
Ignoring refrigerant compatibility
Q1: What is the main purpose of a quick coupling valve?
A1: A quick coupling valve allows for fast, tool-free connection and disconnection of fluid lines, making installation and maintenance easier while minimizing leakage.
Q2: Why are brass valves preferred in HVAC systems?
A2: Brass valves offer excellent durability, corrosion resistance, and pressure tolerance, making them ideal for HVAC and refrigeration applications.
Q3: How do I choose the right size brass quick valve?
A3: Match the valve size (e.g., 1/4", 3/8", 1/2", 3/4") with the pipe or hose diameter in your system, and ensure it’s compatible with your refrigerant or fluid type.
Q4: What's the difference between GIA, GIII, and GIV quick brass valves?
A4: GIA valves are great for split AC systems with double union features. GIII valves are compact and self-sealing for freezers. GIV valves offer high-flow performance for HVAC and irrigation.
Q5: Can I reuse a quick coupling valve after disconnection?
A5: Yes, high-quality brass quick valves are designed for multiple connect/disconnect cycles without compromising performance.
Q6: Is there a standard quick coupler key size for all valves?
A6: No, quick coupler key sizes vary by valve model and manufacturer. Always refer to the product specification.
Q7: Where can I buy reliable quick coupling brass valves?
A7: You can explore high-quality options from Ningbo Top Hcool Metal Fittings, a trusted OEM manufacturer of HVAC brass fittings and quick coupler valves.
When it comes to selecting and installing quick couplers, choosing a brass valve is a decision you won’t regret. Their durability, resistance to harsh environments, and compatibility with various systems make them a staple in HVAC, irrigation, and industrial applications. Whether you need a GIA quick brass valve, a quick coupling valve 3/4, or a 1 quick coupler valve, understanding your system's requirements is the key to making an informed decision.
For professionals looking for precision-engineered brass fittings and quick coupling valves, Ningbo Top Hcool offers a full catalog of high-performance components that meet international standards. With OEM capabilities and a focus on innovation, they are a reliable partner for your HVAC and fluid control needs.
Now that you know the different types of quick coupling valves and how to choose the right one, you’re one step closer to building a more efficient and reliable system.
