How Fan Coil Unit Fittings Impact Energy Efficiency in HVAC Systems

In the world of HVAC (heating, ventilation, and air conditioning) systems, optimizing energy efficiency is one of the most critical objectives for both commercial and residential applications. With the increasing emphasis on sustainable building practices and reducing energy consumption, every component of an HVAC system plays a role in determining overall efficiency. Among these components, fan coil units (FCUs) and their fittings are often overlooked, yet they have a significant impact on the energy performance of the system.

Understanding Fan Coil Units and Their Function

Fan coil units are essential components in HVAC systems, particularly in heating and cooling applications. They are typically used in residential, commercial, and industrial settings to regulate the temperature of individual rooms or zones. FCUs consist of a fan that blows air over a coil, which is either heated or cooled by water or refrigerant. This process allows the unit to transfer heat from the air or provide cooling, depending on the requirements of the space.

Fan coil units are widely used because they offer flexibility, ease of installation, and effective zone control. However, the efficiency of these systems heavily relies on the proper selection and installation of the fittings that connect the fan coil units to the rest of the HVAC system.

The Role of Fan Coil Unit Fittings

Fan coil unit fittings are the connectors, pipes, valves, and other components that link the FCU to the central HVAC system. These fittings are essential for the smooth operation of the system and ensure that air and fluids (such as water or refrigerant) flow efficiently through the system. Properly designed and installed fittings contribute to the overall performance and energy efficiency of HVAC systems in the following ways:

Reducing Heat Loss and Improving Heat Transfer

The fittings used in a fan coil unit system directly affect the amount of heat that is lost or retained during the heating or cooling process. High-quality fittings, such as insulated pipes, minimize heat transfer losses, ensuring that the air or water in the system remains at the desired temperature. Poorly insulated or poorly fitted components can result in energy loss, as heat is transferred to surrounding areas, requiring the system to work harder to maintain the desired temperature.

Efficient fan coil unit fittings also help optimize heat exchange. For example, a well-designed fitting ensures that the water or refrigerant flows uniformly through the coils, providing consistent heat transfer and reducing the energy required to achieve the desired room temperature. In contrast, poorly designed fittings may cause irregular flow, leading to inefficiencies and wasted energy.

Minimizing Pressure Drops

One of the most significant factors affecting the energy efficiency of HVAC systems is pressure drop, which occurs when the air or fluid has to pass through resistance in the piping or fittings. Pressure drops can occur in various parts of the system, including valves, elbows, and connectors. When a system experiences a pressure drop, the pump or fan has to work harder to push the fluid or air through the system, resulting in increased energy consumption.

Fan coil unit fittings that are designed to minimize pressure drop help reduce the strain on the system’s motors and pumps, leading to lower energy consumption. Smooth, well-sized fittings allow for more efficient fluid flow, reducing the need for excess energy to maintain system pressure. This contributes to a more energy-efficient HVAC system and lowers operating costs.

Preventing Leaks and Ensuring Tight Seals

Leaks in an HVAC system, whether in refrigerant lines or water-based systems, can have a substantial impact on energy efficiency. A refrigerant leak, for example, causes the system to lose cooling capacity, forcing the compressor to work harder to cool the space. Similarly, leaks in water lines can result in a drop in pressure, causing the system to run inefficiently.

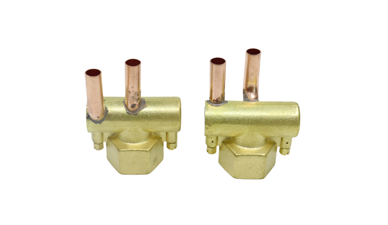

Properly installed fan coil unit fittings are critical for preventing leaks. High-quality, durable fittings made from materials like brass or stainless steel create tight seals that prevent fluid or air from escaping. Additionally, fittings that are resistant to corrosion help extend the lifespan of the system, maintaining optimal performance and efficiency over time.

Optimizing System Balancing

One of the key aspects of an energy-efficient HVAC system is proper system balancing. Balancing refers to the process of ensuring that the right amount of air or fluid flows to each part of the system. Improper balancing can lead to over-heating or over-cooling in some areas while other parts of the system remain under-utilized, resulting in wasted energy and uneven temperature control.

Fan coil unit fittings play a role in system balancing by providing the flexibility to adjust the flow of air or fluid to specific units or areas. Valves, flow regulators, and other fittings enable precise control over the system’s flow rates, ensuring that each FCU receives the correct amount of air or fluid for optimal performance. This balanced approach reduces the strain on the HVAC system and ensures efficient energy use.

Improving Maintenance and Longevity

Regular maintenance is crucial for ensuring the efficiency and longevity of HVAC systems. Fan coil unit fittings that are easy to access, install, and replace make routine maintenance more manageable, reducing the likelihood of system breakdowns and performance degradation. Over time, wear and tear on fittings can cause them to fail, leading to leaks, blockages, and reduced efficiency.

Investing in durable and high-quality fan coil unit fittings ensures that the system operates smoothly and that any necessary repairs or replacements can be completed quickly without significant disruption. By preventing costly repairs and maintaining high performance, these fittings contribute to the long-term energy efficiency of the system.

How Fan Coil Unit Fittings Affect Operational Costs

Operational costs are a critical factor for both residential and commercial HVAC systems. The efficiency of the system’s components, including the fan coil unit fittings, directly impacts the cost of energy consumption. When the fittings are optimized for performance, the system uses less energy to achieve the desired temperature, which can significantly lower utility bills.

Moreover, energy-efficient fan coil unit fittings reduce the need for frequent repairs and replacements, further minimizing operational costs. This results in a lower total cost of ownership, which is particularly important for businesses seeking to keep overhead costs under control.

Conclusion

Fan coil unit fittings are more than just minor components in an HVAC system—they are critical elements that directly affect the energy efficiency, performance, and longevity of the system. By ensuring tight seals, minimizing pressure drops, optimizing heat transfer, and improving system balancing, high-quality fan coil unit fittings help HVAC systems operate more efficiently and cost-effectively.

For anyone looking to enhance the energy efficiency of their HVAC system, investing in top-notch fan coil unit fittings is a smart move. These fittings not only improve the performance of the system but also contribute to long-term energy savings, reduced operational costs, and a more sustainable approach to heating and cooling. Whether for residential or commercial applications, the right fittings can make a significant difference in the overall energy performance of the system, making them a crucial consideration in HVAC system design and maintenance.
