Brass fittings are a crucial component across many industries, especially plumbing, HVAC, automotive, and construction. Known for their durability, corrosion resistance, and excellent conductivity, brass fittings are often the go-to choice when it comes to securing reliable and long-lasting metal connections. Whether you're a professional plumber, a DIY enthusiast, or a purchasing officer for an industrial operation, understanding the different types of brass fittings and their applications is essential.
In this in-depth guide, we’ll explore everything you need to know about brass fittings: the types available, their uses, how they compare to other metal fittings, and how to select the right size or type for your project. We’ll also cover trends in brass fitting manufacturing, how to connect brass to other materials like PVC or copper, and answer commonly asked questions about brass fittings.
Brass is an alloy made primarily of copper and zinc. Its high corrosion resistance and malleability make it a preferred material for pipe fittings in both residential and industrial applications. Unlike other materials, brass can endure high temperatures and pressures while maintaining its shape and integrity, making it ideal for water lines and gas systems alike.
Brass fittings also offer superior sealing capabilities, reducing the risk of leaks in your piping systems. This makes them particularly suitable for both short- and long-term installations. Additionally, brass has natural antimicrobial properties, which is another reason it's commonly used in drinking water systems.
Understanding the variety of brass fittings available helps ensure you choose the right part for the job. Here's a breakdown of the most commonly used brass fittings and their typical applications.
Brass compression fittings are widely used in plumbing and gas connections. These fittings work by compressing a ferrule against the pipe to create a tight seal. They are popular in situations where soldering or welding is not feasible.
Commonly used in:
Water supply lines
Gas lines
HVAC systems
These fittings are designed to change the direction of the piping. A standard elbow brass fitting typically provides a 90-degree turn, but you can also find 45-degree flare fittings for more gradual directional changes.
Applications include:
Plumbing corners
Irrigation systems
Air compressor setups
A T brass fitting allows for the division of flow into two separate directions. These are often used when a single line needs to branch into two.
Used in:
Water distribution lines
Gas supply systems
Industrial machinery
Similar to T fittings but with a Y-shaped junction, these fittings are ideal for smoother flow transitions and reduced turbulence.
Ideal for:
Irrigation systems
Wastewater systems
Compressed air lines
A brass coupling 1/2 inch in size or larger is used to connect two lengths of pipe. A brass fitting union, on the other hand, allows for easy disconnection and reconnection of pipes for maintenance.
These are used in:
Water heaters
Pump systems
Industrial piping
Threaded fittings are used when a secure, leak-proof connection is needed without welding or soldering. They’re available in both male and female configurations, such as the 1/2 brass fitting male to female adapter.
Applications:
Connecting metal pipe fittings
HVAC systems
Fuel lines

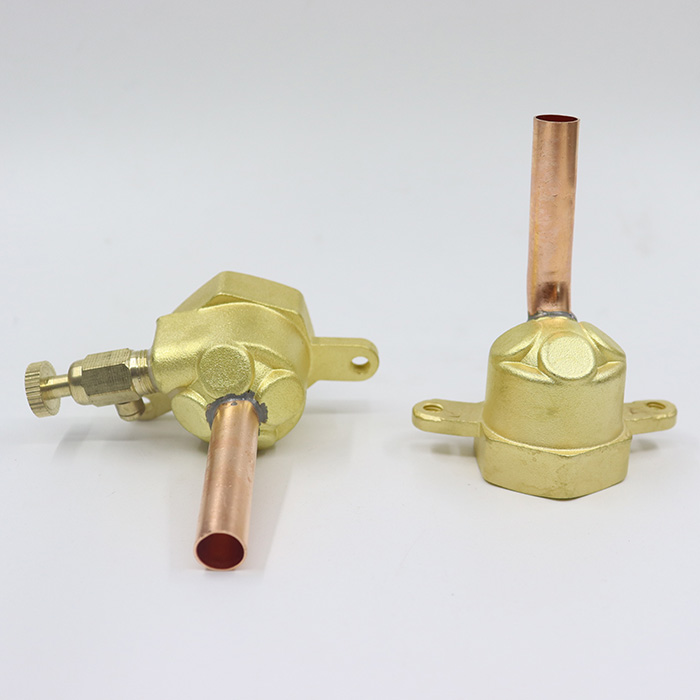

Brass quick valves, like those featured in this brass quick valve line, allow fast and efficient shut-off or flow control. These valves are key components in systems that require frequent opening and closing of the valve.
Water lines demand materials that resist corrosion, offer long-term durability, and maintain water purity. Brass fittings for water lines meet all these criteria. They are compliant with health standards and work well with both hot and cold water systems.
Some commonly used fittings for water lines include:
Elbow brass fittings for turning corners
T brass fittings for branching lines
Brass compression fittings for secure, solder-free joint
One question that often arises is how to connect a brass fitting to PVC. This connection is common in residential plumbing where PVC is used for drain lines and brass is used for supply lines.
To connect PVC to brass fitting properly:
Use a threaded brass pipe fitting with a male or female end.
Apply Teflon tape or pipe dope to prevent leaks.
Tighten securely, but avoid over-tightening to prevent damage.
This type of connection is often labeled as a brass fitting to PVC adapter.

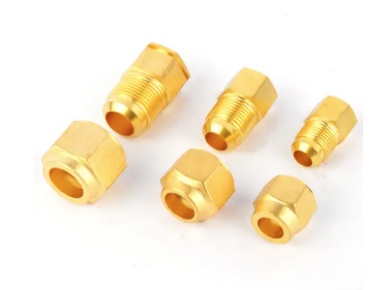

Copper and brass are both metals, which makes their connection easier than with plastic. However, it’s still important to understand which part of a brass fitting is the flare when using flare fittings. The flare is the angled surface that matches the flared end of the copper tube to create a seal.
To connect copper to brass fitting:
Use a flare or compression fitting depending on the application.
Ensure the copper pipe is clean and deburred.
Tighten the nut until the flare or compression ring seals securely.
Size matters when choosing brass fittings. Using a fitting that’s too large or too small can lead to leaks, pressure loss, or system failure.
Below is a simplified brass fitting size chart:
| Pipe Size (Inches) | Outside Diameter (OD) | Common Use |
|---|---|---|
| 1/4 | 0.375 | Appliances, gas lines |
| 3/8 | 0.5 | Water lines, HVAC |
| 1/2 | 0.625 | Main supply lines |
| 5/8 | 0.75 | Industrial systems |
| 3/4 | 0.875 | Irrigation, commercial use |
You can also refer to a complete brass fitting catalog or brass pipe fittings catalog from a reliable brass fitting manufacturer or brass fitting supplier to get more detailed specifications.
The dimensions of brass fittings are standardized to ensure compatibility across regions and manufacturers. Always consult a brass fitting chart or brass fitting dimensions guide when selecting fittings to ensure a perfect match.
Most fittings follow the NPT (National Pipe Thread) standard in North America or BSP (British Standard Pipe) in other regions.
When selecting fittings for your project, sourcing from a reputable brass fitting manufacturer is essential. Look for companies that offer:
A comprehensive brass fitting catalog
Custom brass fitting supply options
Strict quality control and testing
Global logistics and support
TOPhcool is a leading name in the industry and provides a wide range of brass fittings, including quick valves, elbows, and unions.
Brass fittings aren’t limited to residential plumbing. Here’s how they’re used across various sectors:
| Industry | Application |
|---|---|
| Automotive | Fuel lines, brake systems |
| HVAC | Refrigerant lines, compressor fittings |
| Agriculture | Irrigation systems, sprinkler connections |
| Construction | Water and gas distribution in buildings |
| Manufacturing | Pneumatic and hydraulic systems |
When comparing brass to other metal pipe fittings like steel, copper, or plastic, brass often comes out ahead in terms of durability, corrosion resistance, and versatility.
| Material | Corrosion Resistance | Ease of Installation | Cost | Durability |
|---|---|---|---|---|
| Brass | Excellent | Easy | Medium | High |
| Copper | Good | Moderate | High | Medium |
| Steel | Poor (unless coated) | Hard | Low | High |
| PVC | Excellent | Very Easy | Low | Low |
To get the most out of your brass fittings:
Regularly inspect for leaks or corrosion
Use proper installation tools
Avoid overtightening
Use compatible sealants
With proper care, brass fittings can last for decades, especially in water or gas systems.
Q1: What is a brass fitting used for?
A1: A brass fitting is used to connect, redirect, or terminate metal or plastic piping systems. They are common in water, gas, and HVAC applications due to their durability and corrosion resistance.
Q2: Which part of a brass fitting is the flare?
A2: The flare is the conical end of the fitting that matches the flared end of a pipe or tube. It's used to create a leak-proof seal when tightened with a nut.
Q3: Can I connect PVC to a brass fitting?
A3: Yes, you can use a threaded adapter to connect PVC to brass fitting. Make sure to seal the threads properly with Teflon tape or pipe sealant.
Q4: How do I find the right brass fitting size?
A4: Use a brass fitting size chart or refer to your pipe’s outside diameter. You can also consult a brass fitting catalog for detailed dimensions and specifications.
Q5: Are brass fittings safe for drinking water?
A5: Yes, high-quality brass fittings are safe for potable water systems. Ensure they are lead-free and compliant with local plumbing codes.
Q6: How long do brass fittings last?
A6: Brass fittings can last 40-70 years or more when properly installed and maintained, especially in water and gas systems.
Q7: Where can I find a reliable brass fitting supplier?
A7: You can source from reputable manufacturers like TOPhcool, which offers a wide range of brass fittings and specializes in global brass fitting supply.
Brass fittings are a cornerstone of modern plumbing and industrial systems due to their unmatched combination of strength, corrosion resistance, and versatility. Whether you're installing a new water line, upgrading your HVAC system, or maintaining agricultural irrigation, there’s a brass fitting designed for the job. From understanding the brass fitting dimensions to choosing the right brass fitting manufacturer, making informed choices can significantly enhance the performance and longevity of your systems.
Use this guide as your go-to resource for everything related to brass fittings, and stay updated with innovations by exploring new products like the brass quick valves and other fittings from trusted suppliers such as TOPhcool.
