HCOOL

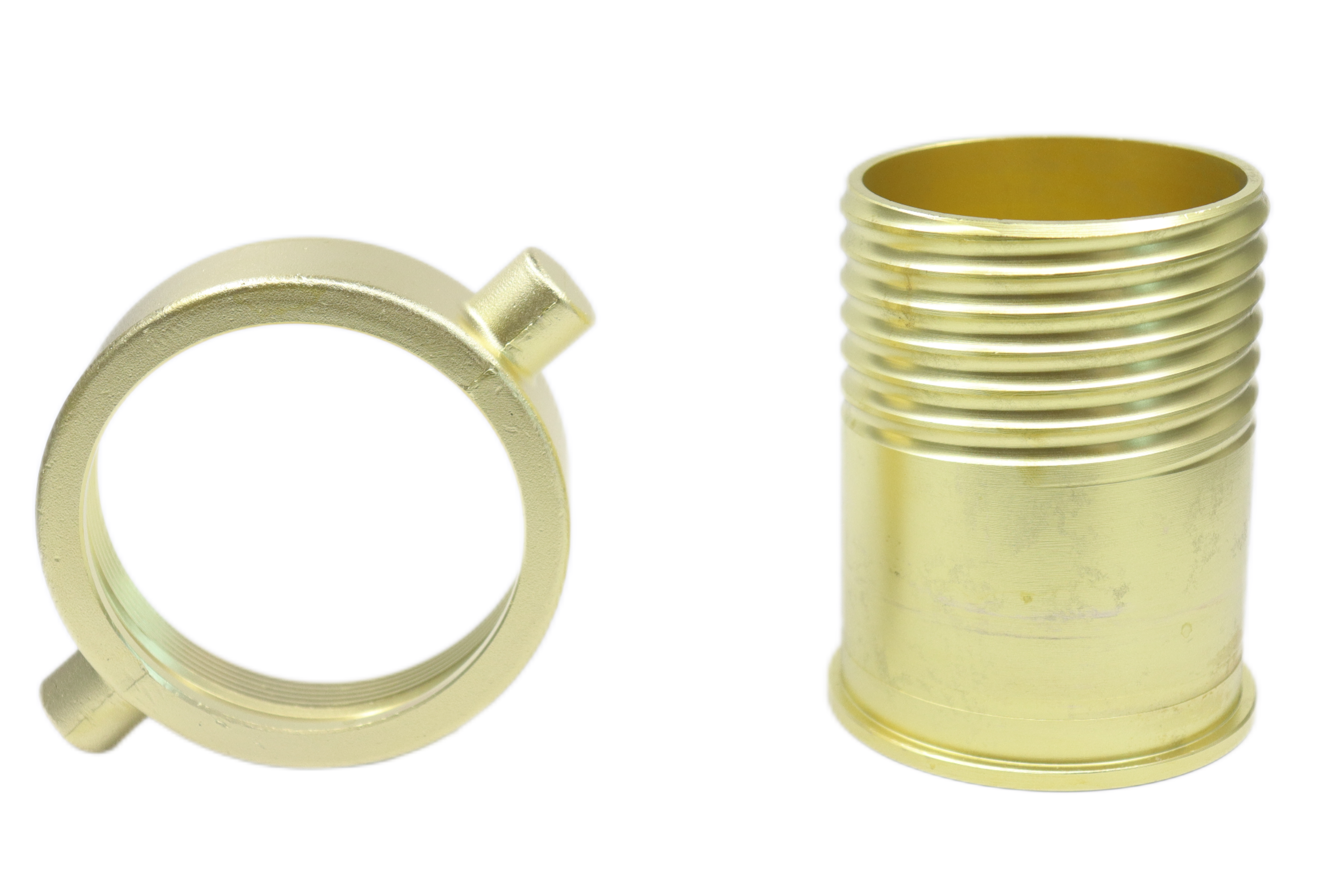

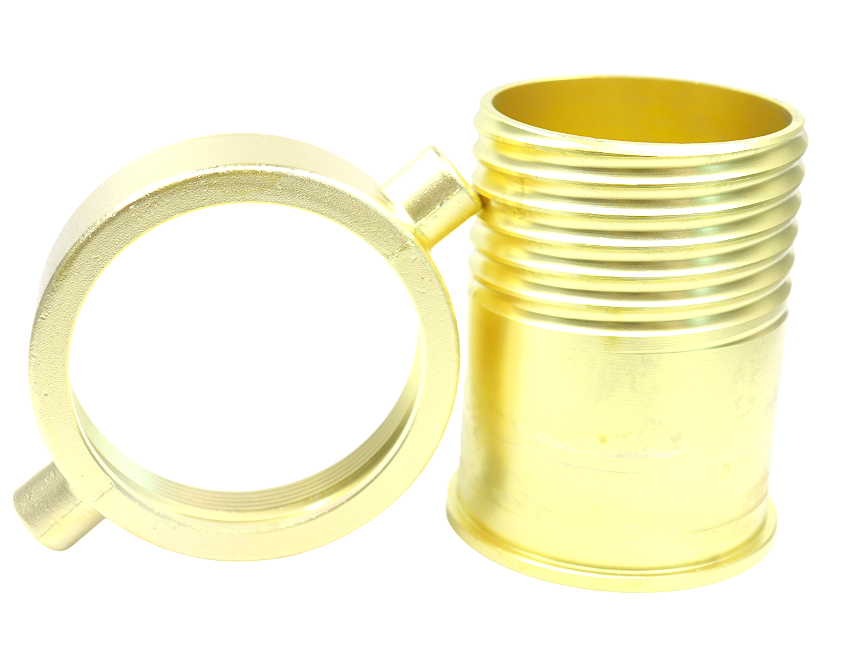

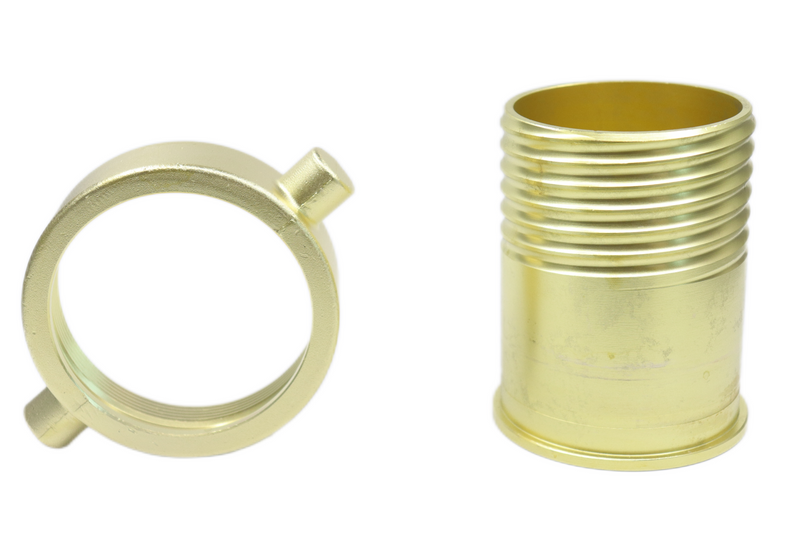

Brass male thread union connector for plumging system is forged from high-purity brass and is not easily broken.
Suitable for pipeline systems such as water, oil, and gas. Adopting NPT/BSP standard threads, it has strong sealing performance and is an ideal connector for engineering matching, hydraulic equipment, and fire protection pipelines.
Hexagon joint brass pipe fittings are widely used in water, oil, gas pipe system and HVAC system.
Normally the material based on 59-1 or H62, but for the water plumbing system will requrie the lead free material.
Applicable Medium:Water, air, oil, natural gas, non corrosive liquids
Material Properties:Corrosion resistance, oxidation resistance, high mechanical strength, and good processing performance
Thread Standard:
| Thread type | Standard | Application area |
| NPT | ANSI BI.20.1 | The north American |
| BSP/BSPP | ISO 228/BS 2779 | The UK,Europe,Aisa,Australia |
| BSPT | ISO 7-1 | British taper pipe thread |
| Metric | DIN 13 / ISO 261 | China,Germany |
Remark:Internal thread/external thread/combination of internal and external threads, with different thread sizes at both ends (reducing joint).
Inch size:1/8",1/4",3/8"5/8",3/4",7/8",1",1-1/4",1-1/2",2"
Metric size: DN6,DN8,DN10,DN15,DN20,DN25,DN32,DN40,DN50
Remark: accept the customized size.
| Industry | Application |
| Plumbing | Connection of household/commercial water supply and drainage pipelines |
| Gas system | Natural gas and liquefied gas pipeline docking |
| Hydraulic and Pneumatic | Oil and gas pipeline fittings connection |
| Industrial equipment | Air compressor, pump valve, instrument interface |
| Fire protection system | Fire pipeline joint |
| Agricultural irrigation | Sprinkler irrigation and drip irrigation system pipelines |
Ningbo Hcool Ftittings provide the customized production for different pipe diameters and application requirements.
If you have technical drawings, target dimensions, or project specifications, we can help evaluate the suitable product structure for your system.
Customization options may include:
1.Threaded standard
2.Specification of threads at both ends (same diameter/different diameter)
3.Do you need special materials (lead-free/nickel plated)
4.Working medium and pressure requirements

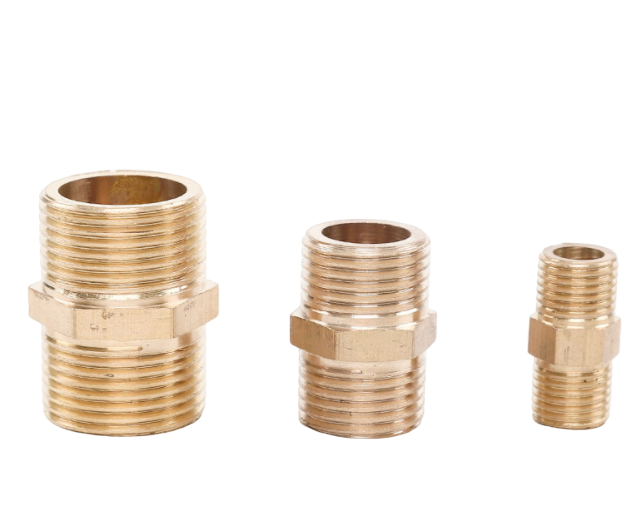

Hexagonal edge design, convenient for wrench installation, easy to operate.
Double external thread structure, straight connection, reducing intermediate joints.
Precision machining, tight thread fit, not easy to leak.
Brass material has good weather resistance and can be used both indoors and outdoors.
LCL- opp bag,carton box, pallet to protect.
FCL- opp bag, carton box, pallet will be option
Q1: Is this brass hexagonal double joint corrosion-resistant? In which media is it suitable for use?
A:Good corrosion resistance. This product is made of HPb59-1 or H62 brass material, which has good corrosion resistance to common media such as water, air, oil, and natural gas. It is not recommended to use it in strong acid, strong alkali or seawater environments for a long time. If there is such a need, stainless steel or special coating versions can be selected.
✅ The lead-free brass version is suitable for drinking water systems and complies with RoHS environmental standards.
Q2:Can this connector be used on natural gas pipelines?Is it safe?
A:yes, but need choose the suitable brass, such as HPb 59-1 or higher.And consider the specific sealant tape and below working pressure 2.5Mpa.
Q3:Can the thread sizes at both ends be different? For example, 1/2 inch on one end and 3/4 inch on the other end?
A:Yes,This product supports customized double outer thread fittings with different thread specifications at both ends, used to connect pipelines of different diameters.Such as 1/2-3/4 etc.
